RC3.5 RC Reverse Circulation Hammer
Compatibility: RE035, AD620

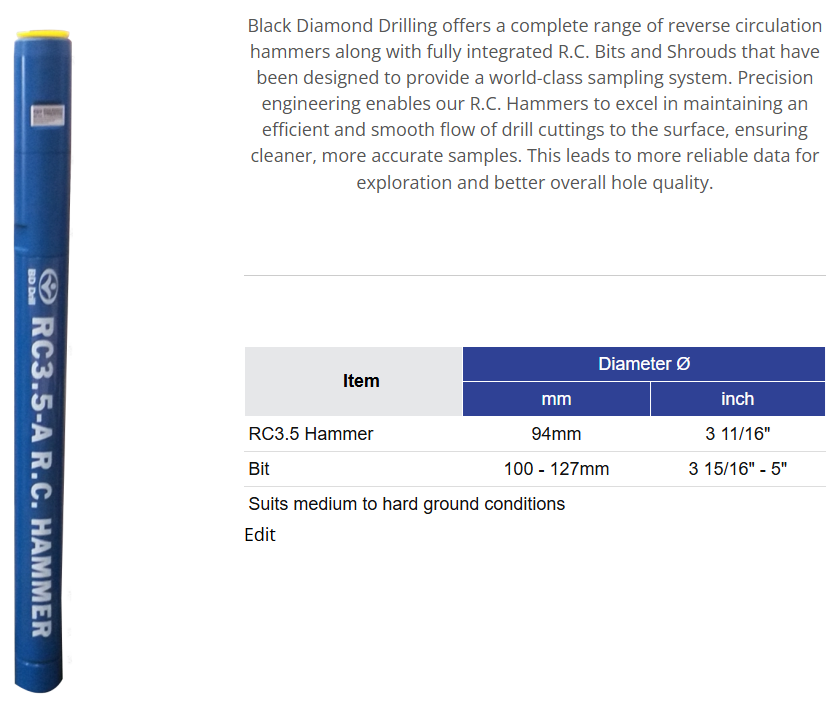

Black Diamond Drilling offers a complete range of reverse circulation hammers along with fully integrated R.C. Bits and Shrouds that have been designed to provide a world-class sampling system. Precision engineering enables our R.C. Hammers to excel in maintaining an efficient and smooth flow of drill cuttings to the surface, ensuring cleaner, more accurate samples. This leads to more reliable data for exploration and better overall hole quality.
| Item | Diameter Ø | |
| mm | inch | |
| RC3.5 Hammer | 94mm | 3 11/16" |
| Bit | 100 - 127mm | 3 15/16" - 5" |
| Suits medium to hard ground conditions | ||

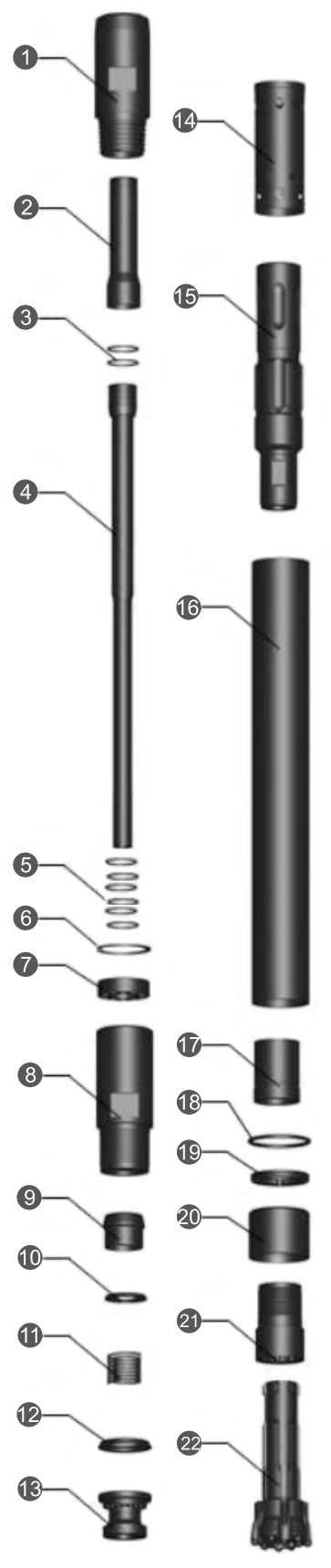

RC3.5 RC Reverse Circulation Hammer Parts List
| Top Sub Assembly | Product Code | Description | Amount | Compatibility |
| 1 | RC3.5-TSUB-R3 | Top Sub Remet 3" | 1 | 33-035-R30 |
| 2 | RC3.5-ASCREEN-R3 | Adaptor Tube Remet 3" | 1 | 20-035-R30 |
| 3 | RC3.5-SK-ASCREEN-R3 | O Ring (Adaptor Tube Remet 3") | 2 | 38-035-000 |
| Hammer Assembly | Product Code | Description | Amount | Compatibility |
| 4 | RC3.5-STUBE | Sample Tube | 1 | 37-035-00U |
| 5 | RC3.5-SK-STUBE | O Ring (Sample Tube) | 6 | 38-035-000 |
| 6 | RC3.5-CIRCLIP | Circlip | 1 | - |
| 7 | RC3.5-DIST | Distributor | 1 | 29-035-000 |
| 8 | RC3.5-TBARREL | Top Barrel (Sub) | 1 | - |
| 9 | RC3.5-CVALVE | Check Valve/Plunger | 1 | 25-035-000 |
| 10 | RC3.5-SK-CVALVE | Y Ring (Check Valve) | 1 | 38-035-000 |
| 11 | RC3.5-SPRING | Spring | 1 | 22-035-000 |
| 12 | RC3.5-MUR-STEEL | Make Up Ring Steel | 1 | 24-035-000 |
| 13 | RC3.5-STUBE-MOUNT | Mount Sample Tube | 1 | 37-035-00L |
| 14 | RC3.5-ICYL | Inner Cyclinder/Top Barrel | 1 | 31-035-000 |
| 15 | RC3.5-PISTON | Piston | 1 | 36-035-000 |
| 16 | RC3.5-ECYL | External Cylinder/Barrel/Piston Case | 1 | 35-035-000 |
| 17 | RC3.5-BUSH | Bearing Bush | 1 | - |
| 18 | RC3.5-SK-SRING | O Ring (Bit Stop Ring) | 1 | 38-035-000 |
| 19 | RC3.5-SRING | Bit Stop Ring | 1 | 27-035-000 |
| 20 | RC3.5-SHROUD-104/102 | Shroud | 1 | 40-035M-307-RE035 |
| 21 | RC3.5-DSUB | Drive Sub | 1 | 16-035-000 |
| 22 | RC3.5-104DC-TV | Drill Bit | 1 | 63-035-400DC |
| 23 | RC3.5-SK | Seal Kit (3+5+10+18) | 1 | 38-035-000 |
Bit Selection Table
Shroud Selection Table
Bit Selection Table
| Bit Product Code | Diameter | Compatibility | |
| Metric | Imperial | ||
| RC3.5-100DC-TPD | 100mm | 4" | 63-035-400DC |
| RC3.5-104DC-TPD | 104mm | 4 1/8" | - |
| RC3.5-108DC-TPD | 108mm | 4 1/4" | - |
| RC3.5-114DC-TPD | 114mm | 4 1/2" | - |
Shroud Selection Table

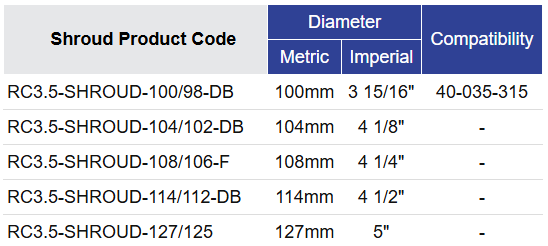

| Shroud Product Code | Diameter | Compatibility | |
| Metric | Imperial | ||
| RC3.5-SHROUD-100/98-DB | 100mm | 3 15/16" | 40-035-315 |
| RC3.5-SHROUD-104/102-DB | 104mm | 4 1/8" | - |
| RC3.5-SHROUD-108/106-F | 108mm | 4 1/4" | - |
| RC3.5-SHROUD-114/112-DB | 114mm | 4 1/2" | - |
| RC3.5-SHROUD-127/125 | 127mm | 5" | - |
General Specifications
Air Consumption
General Specifications
| Description | Metric | Imperial |
| Piston Case OD | 94mm | 3 11/16 |
| Hammer Length | 1184mm | 3' 10 3/8" |
| Hammer Weight | 44.0kg | 97 lb |
| Bit Size Range | 100-114mm | 3 15/16" - 4 1/2" |
| Drill Rod Diameter | 89mm | 3 1/2" |
| Spanner Flat Width - Inner Cylinder | - | - |
| Spanner Flat Width - Top Sub | 40mm | 1 9/16" |

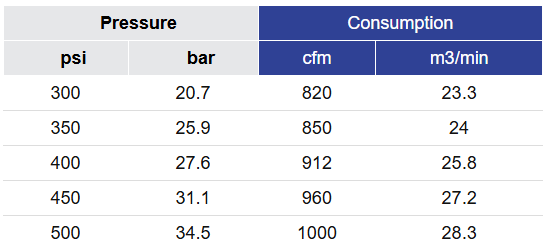

Air Consumption
| Pressure | Consumption | ||
| psi | bar | cfm | m3/min |
| 150 | 10.3 | 220 | 6.2 |
| 200 | 13.8 | 300 | 8.4 |
| 250 | 17.2 | 340 | 9.5 |
| 300 | 20.7 | 415 | 11.7 |
| 350 | 24.1 | 504 | 14.2 |
| 400 | 27.5 | 585 | 16.5 |
