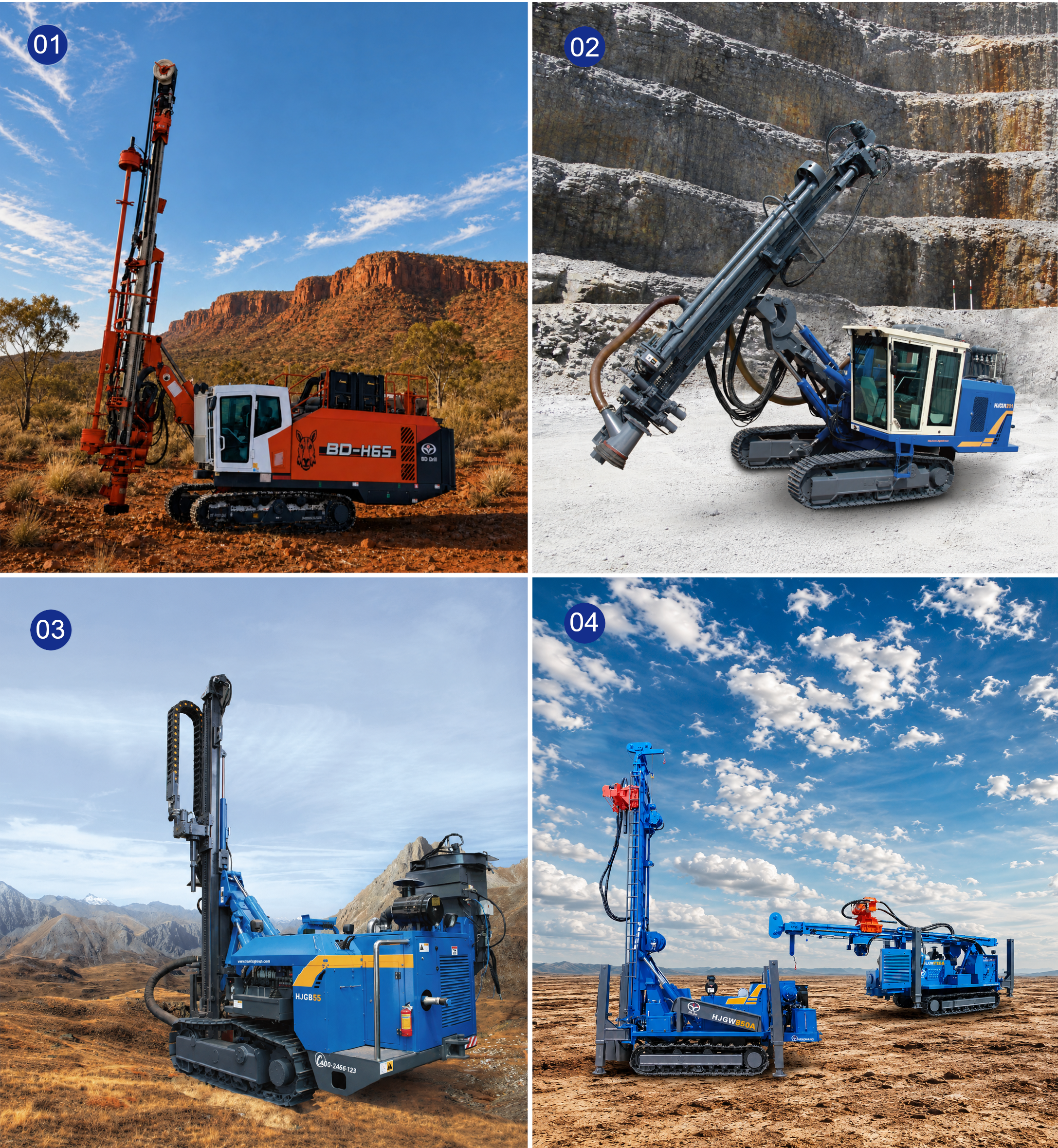

Black Diamond Drilling Drill Rigs

Black Diamond Drilling Full Hydraulic Multifunctional Drill Rig Parameters

Parameter	Type
Parameter	HJG-M165	HJG-M311
Aperture	140-180mm	203-311mm
Drilling Depth	24m	24m
Adaptive Rock	f⩽8
Rotation torque	4000Nm	6000Nm
Rotary speed	0~60rpm	0~40rpm
Thrust capacity	40kN	75kN
Feed stroke	4380mm	4380mm
Lifting Speed	0.5m/s	0.3m/s
Hammer Model	HD65	HD85/HD110
Drill rod diameter	110mm	146mm
Drill rod length	4mX6	4mX6
Travel speed	2.5Km/h 3Km/h	2.5Km/h 3Km/h
Grade ability	25°	25°
Rising height from ground	450mm	450mm
Wind pressure	1.38~3.2Mpa	1.38~3.2Mpa
Air consumption	⩾25m³/min	⩾28m³/min
Engine power	75kW	93kW
Dimension	Length X Width X Height
On transportation	9000X2900X3400mm	9000X2900X3400mm
On working condition	7700X2900X7800mm	7700X2900X7800mm
Gross weight	17T	18T

Black Diamond Crawler Hydraulic Wells-Geothermal Drilling Parameters

Parameter	Type
Parameter	HJG-W830C	HJG-W830A	HJG-W850A
Aperture	105~311mm	105~311mm	130~350mm
Drilling depth	300m	300m	500m
Cylinder legs	Common legs	High legs	High legs
Adaptive rock	f⩽8
Rotation torque	4400Nm	3450Nm 6900Nm	4250Nm 8500Nm
Rotary speed	0~100r/min	0~110r/min 0~55r/min	0~180r/min 0~90r/min
Thrust capacity	60kN	60kN	60kN
Feed stroke	3700mm	3700mm	5300mm
Lifting capacity	120kN	120kN	200kN
Hammer model	HD45/HD55/HD65	HD45/HD55/HD65	HD65/HD85/HN10
Drill rod diameter	76mm, 89mm	76mm, 89mm	89mm, 102mm
Drill rod length	3m	3m	4.5m
Travel speed	2.5Km/h	2.5Km/h	3.2Km/h
Grade ability	21°	21°	21°
Rising height from ground	300mm	300mm	300mm
Wind pressure	1.05~2.46Mpa	1.05~2.46Mpa	1.05~3.5Mpa
Air consumption	⩾18m³/min	⩾18m³/min	⩾25m³/min
Engine power	93kW	93kW	132kW
Dimension	LengthXWidthXHeight
On transportation	5800X2210X2850mm	5800X2210X2850mm	8085X2250X3200mm
On working	4920X2210X6700mm	4920X2210X6700mm	5498X2250X8941mm
Gross weight	8.8T	9.5T	12.5T

Black Diamond Hydraulic Open-Air Blast Hole Drilling Rig Parameters

Parameter	Type
Parameter	HJG-B138	HJG-B168
Aperture	90~152mm	105~180mm
Drilling depth	30m	30m
Adaptive rock	f⩽8
Rotation torque	3000Nm	4000Nm
Rotary speed	0~72r/min
Thrust capacity	32kN	32kN
Feed stroke	4000mm	4000mm
Lifting capacity	32kN	32kN
Lifting speed	0.5m/s	0.5m/s
Hammer model	HD45/HD55	HD65/HD85
Drill rod diameter	76mm, 89mm	89mm, 114mm
Travel speed	2.5Km/h 3.8Km/h	2.5Km/h 3.8Km/h
Grade ability	30°	30°
Wind pressure	1.05~2.46Mpa	1.38~2.46Mpa
Air consumption	⩾18m³/min	⩾21m³/min
Engine power	75kW	75kW
Dimensions	LengthXWidthXHeight
On transportation	6170X2150X2480mm	6170X2150X2480mm
On working	4360X2150X5380mm	4360X2150X5380mm
Gross weight	6.5T	6.8T

Black Diamond Integrated Hydraulic DTH Drilling Rig Parameters

Parameter	Type
Parameter	HJG-D120	HJG-D165
Aperture	90~150mm	152~180mm
Drilling depth	28m	28m
Adaptive rock	f⩾8
Rotation torque	3000Nm	4000Nm
Rotary speed	10~100rpm	10~100rpm
Thrust capacity	35kN	40kN
Feed stroke	4380mm	4380mm
Lifting speed	0.8m/s	0.8m/s
Hammer model	HD45/HD55	HD55/HD65
Drill rod diameter	89mm, 102mm	102mm, 114mm
Drill rod length	4m	4m
Travel speed	2.5Km/h 3Km/h	2.5Km/h 3Km/h
Grade ability	25°	25°
Rising height from ground	430mm	430mm
Wind pressure	1.7Mpa	2.4Mpa
Air consumption	⩾17m³/min	⩾25m³/min
Engine power	287kW	332kW
Dimensions	Length X Width X Height
On transportation	11000X2500X3280mm	11550X2716X3400mm
On working	7800X2500X8410mm	7920X2716X8410mm
Gross weight	15.5T	23T
